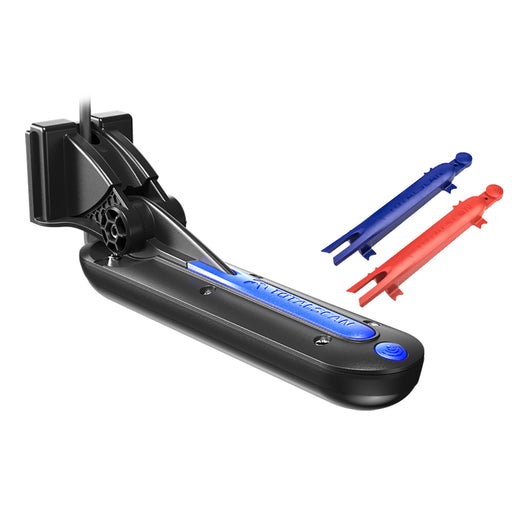

TotalScan Transom Mount transducer

An all-in-one transducer that matches proven CHIRP sonar with StructureScan® HD and DownScan Imaging technology, making it possible to target fish and search for fish-holding structure with the same transducer.

The TotalScan transducer features multiple mounting options and is fully compatible with displays featuring integrated StructureScan HD, like Lowrance HDS Gen3, Elite-7 Ti, Elite-5 Ti, Simrad NSS evo2, and NSO evo2.

The TotalScan transducer is one of four new transducers that feature the new xSonic (9-pin black) 24ft cable.

An adapter cable will be available to connect xSonic (9-pin black) transducers to legacy displays that have a 7-pin blue connector.

Note: When a TotalScan transducer is connected to a legacy display with a 7-pin blue connector, the side-scanning feature will not function.

Features

All-in-one transducer featuring CHIRP Sonar, StructureScan HD and DownScan Imaging
Also supports 83/200kHz Broadband Sounder frequencies
Supports Medium and High CHIRP Sonar frequencies
Supports 455/800kHz StructureScan HD frequencies
Multiple mounting options
Fully compatible with Lowrance HDS Gen3, Elite-7Ti, Elite-5Ti, Simrad NSS evo2, and NSO evo2
Compatible with select legacy displays (Requires xSonic transducer adapter - side-scanning sonar not supported on legacy products)

Specifications:

Temperature: Yes
Speed Included: No
Pins: 9
Mounting Style: Transom
Imagining: Standard/Down/Side
Chirp: Medium/High
Cable Length (Feet): 24'
Box Dimensions: 3"H x 10"W x 13"L WT: 3.25 lbs
UPC: 9420024145265
